Check the 512V 100Ah liFePO4 battery wholesale price, PVMars 51.2kWh rack mount battery energy storage system over 12 years lifespan, with BMS to solve your power shortage in factory/office/farm.
Price Term: EXW
Place Of Origin: China
MOQ: 1 set, accept OEM & ODM
Type: 512V 100Ah liFePO4 battery
Commercial battery energy storage solution (BESS)
The 512V 100Ah lifepo4 battery is the same as conventional lithium batteries. It is composed of positive and negative active materials, separators, electrolytes, current collectors, casings, etc.
When the lithium battery works, the above accessories play the following roles:
Maybe the text explanation is too thin. You can click on the video below to watch the internal structure video of the 51.2kWh rack-mounted lifepo4 battery:
The cathode material selected for the 512V 100Ah battery produced by PVMars is a lithium iron phosphate (LiFePO4) battery cell.
This is one of the safest cathode materials in the world.
It has strong cycle stability, a long service life (12 years), and an environmentally friendly composition that is easy to recycle. Among them, the battery cell raw material suppliers we cooperate with include BYD, CATL, and EVE.
PVMars promises a 30-day return policy on all products.
In addition, each PVMars lithium battery is equipped with a battery management system (BMS), which is also a vital component of lithium iron phosphate batteries.
BMS includes:
Function Parameter | |
Norminal Battery Energy | 51200Wh |
Norminal Capacity | 100Ah |
Norminal Voltage | 512V |
Internal Resistance | ≤10mΩ |
Cycle Life | >6000 cycles |
Months Self Discharge | <3% |
Charge Data | |
Charger Current | 20A-50A |
Max. Charge Current | 100A |
Charge Cut-off Voltage | 584V |
Discharge Data | |
Continuous Current | 20A |
Max continuous discharge current | 100A |
Discharge Cut-off Voltage | 400V |
Working Condition | |
Charge Temperature | 0ºC to 45ºC (32ºF to 113ºF) @60±25% Moisture Relative |
Discharge Temperature | -20ºC to 60ºC (-4ºF to 140ºF) @60±25% Moisture Relative |
Storage Temperature | 0ºC to 40ºC (32ºF to 104ºF) @60±25% Moisture Relative |
Enclosure Protection Level | IP67 |
Mechanical Data | |
Shell material | Metal Case |
Dimensions | 460*450*1700mm |
Weight (lbs./kg.) | About 600kg |
Warranty | We offer a standard 6 years warranty, but can offer 10+ years upon request |
OEM | The ability to customize dimensions, current, logos, etc. |
512V 100Ah lifepo4 batteries cost US$7180/unit (Valid for 30 days)
Please note that lithium batteries are priced on Wh, which is stored electrical energy.
It is difficult to tell the actual capacity (electric energy) of a lithium battery with the naked eye. Although the casing is marked 512V 100Ah, is the actual capacity that much?
Avoid buying fake batteries, which need to be tested to determine whether they are genuine. Please click on the “Battery Capacity Test Video” to get more battery secrets.
AH is a unit for measuring electrical storage equipment capacity. Its scientific name is “ampere hour”, which means that electrical storage equipment can continue to work for 1 hour when the power supply current intensity is 1A.
WH is a form of energy (electrical energy) and is equal to the voltage of the solar cell (V) multiplied by the AH of the battery.
The resulting WH value is divided by 1000, and the result is KWH (degree).
Conversion formula: 1WH = V * AH, 1KWH = 1WH / 1000.
That means that a 512V 100AH lithium battery can store a capacity of 512V * 100AH = 51.2vah / 1000 = 51.2kWh.
The last 51.2kWh / 5kW = 10.24 hours means that a 512V 100Ah battery can supply power to a 5000W electrical device for about 10 hours.
In layman’s terms, it means how many hours a lithium battery can work when power fails. PVMars senior engineer wrote an article to explain this issue. If you are interested, you can click on the orange font to get more information.
Its focus here is on what kind of electrical equipment the lithium battery is connected to.

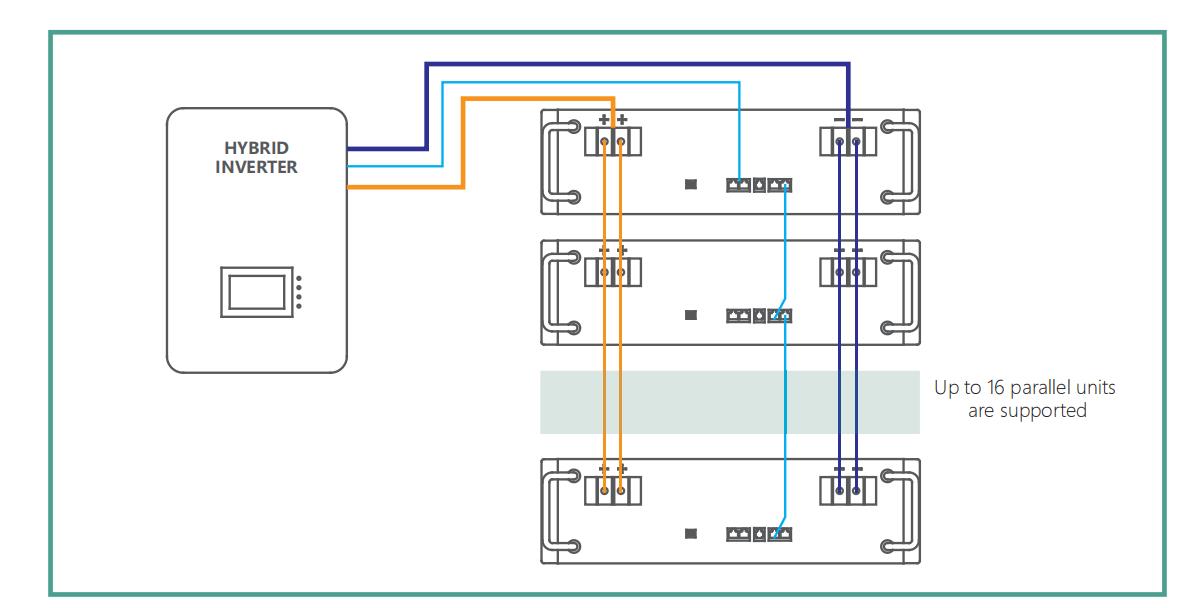

The 512V 100Ah lithium battery can be directly connected and used if it is a DC fan or lamp.
Because the lithium battery outputs direct current. But if your load is an AC appliance, an inverter is required to perform DC-AC conversion to supply your load.
PVMars lithium batteries can be connected to any brand of inverter without communication protocol restrictions.
However, you need to provide the inverter parameters – such as DC voltage, power, output voltage, etc. Of the inverter (specifically reflected in the inverter). The side or back of the inverter. You can take a photo and send it to [email protected])
For your safety, PVMars is not just talking, we take practical actions to protect your property and life!
PVMars’ lithium batteries need strict testing before shipment, including temperature testing of lithium batteries.
Because the lithium batteries are temperature-sensitive if it exceeds -20℃, unqualified lithium batteries will stop discharging. You can see how PVMars performs temperature extreme testing in the video below:
In addition, there are 9 major procedures for inspecting lithium batteries:
Lithium batteries belong to the 9 category of dangerous goods.
You will need MSDS, sea/air transportation identification report, UN38.3 test report, dangerous package certificate, and other certifications before exporting.
Ensure no accidents occur during lithium battery transportation.
PVMars provides them all here, you can click to download the relevant certification and provide it to your freight forwarder to get a sea freight cost quote. Or contact [email protected] to arrange shipping.
Mr. Li, the founder of PVMARS Solar, has been to more than 32 countries for field surveys and solar energy storage system installation. He has trained 5 core solar system and wind turbine system installation experts, as well as a number of overseas installers.
If you need our overseas installation service, the engineer will arrive at the installation site within 10 days after the goods arrive at the port.
In addition, for users who purchase our photovoltaic energy products, wind turbine products, solar all in one street led light products, and solar air conditioning products, we will provide the paper version of installation instructions and electrical drawings with the shipment of goods, as well as the electronic version online.
For the needs of different users, to ensure the correct installation of the product, your dedicated engineers have been waiting online, at any time to video remote communication with you, patiently guide you step by step to complete the installation, and debug the operation of the machine etc. Ensure that you are protected from all hidden dangers.
By partnering with experienced PVMARS Solar, you can be confident that your installation project will be successful. This will meet your renewable energy needs for 25 years and more.
Get more installation manual and video, please contact us
