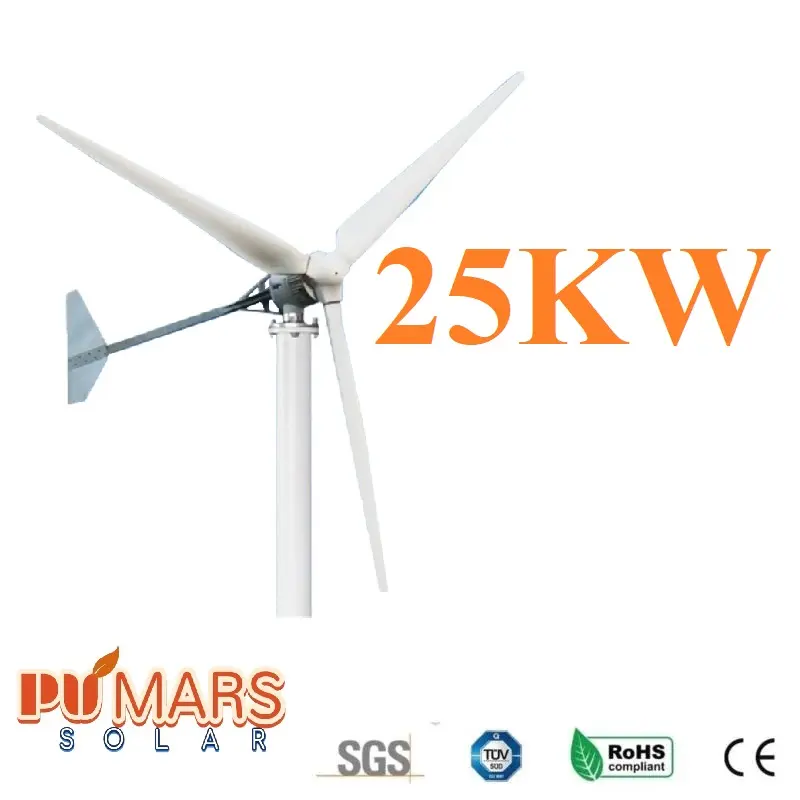

PVMars provides a world-class 25kW wind turbine with a controller, IGBT inverter, and batteries. Full set 25kW wind plant for villa, hospital, and farm.
Price Term: EXW
Place Of Origin: China
MOQ: 1 set, accept OEM & ODM
Type: 25kW horizontal wind turbine
Home and Commercial wind power storage solution
Can work with solar/battery/grid or generator backup
We can divide it into many types of wind turbines based on different axial directions. (Click on the orange font for more information).
PVMARS is committed to customers receiving complete products. If there are any missing parts or quality issues, you can check our after-sales policy and enter your money protection mechanism.
Tips: 25kW = 25 kilowatts = 25000 watts = 33kVA
1) PVMARS’s horizontal axis wind turbines have tail rudders. These rudders can automatically adjust the windward angle to 360°, without fear of wind direction changes. Increase power generation.
2) The wind blades are reinforced with fiberglass, which can withstand violent storms of more than 40m/s.
3) Using a three-phase AC permanent magnet synchronous generator, it can work safely in a cold environment of -40°C.
PVMARS can add color to wind blades according to your local environment, reducing bird deaths.
Why can adding color protect the local ecological environment? Click on the orange font to learn 8 cool facts about wind turbines
More specific parameters are as follows:
Model | MF-25000 |
Rated power | 25000W |
Starting wind speed | 2.5m/s |
Rated voltage | 220V/240V/380V |
Rated wind speed | 11m/s |
Security wind speed | ≤50m/s |
Rated DC voltage | 360V |
Number of blades | 3 |
Wind blade diameter | 9.5m |
Control mode | Electric brakes |
Generator type | 3 phase AC permanent magnet synchronous generator |
Fuselage material | Reinforced die-cast aluminum+steel |
Temperature | -40℃ ~ 80℃ |
Service life/Degree of protection | ≥ 20 years / IP54 |
Packing material | Foam and plywood |
N.W&G.W(kg) | 1050kg/1150kg |
Packing size | 147*72*96cm + 461*55*50cm + 65*65*32cm + 145*120*6cm 25kw wind turbine is packaged in these 4 parts – wind blades, generator and other accessories |
From the power curve table below, we know that the wind turbine’s energy changes as the wind speed changes.
When the wind speed reaches 10m/s, it can generate 25kW of power.
But the wind speed is not 10m/s all the time, so we calculate the average wind speed.
With an average wind speed of 5m/s, a 25kw wind turbine can generate 150kwh daily.
What should I do if the wind speed is not enough?
You may consider using a 20kw wind-solar hybrid system
25kW wind turbines cost US$ 9,784. ( Here only the wind turbine, about full set wind power system price is below ).
While 25kW wind turbines aren’t massive, they require a decent amount of space, considering two main factors:
1. Rotor diameter: This is the size of the circle swept by the blades when spinning. 25kW turbines have diameters of 10 to 13 meters (33 to 43 feet). Imagine a circle that covers the ground wide – that’s the minimum horizontal space needed for safe operation.
2. Tower height: To capture stronger winds, the turbine needs to be placed high up. 25kW turbines typically sit on towers ranging from 12 to 18 meters (39 to 59 feet) tall. This adds to the vertical space requirement.
Therefore, the total footprint of a 25kW wind turbine can vary depending on the specific model.
However, it’s generally within a circle of 22-30 meters radius and a height of 10-13 meters from the tower base to the blade tip.
Football fields are 91 meters (100 yards) long and 49 meters (53.3 yards) wide.
There’s no way a 25kW wind generator will cover an entire football field, but it won’t take up most of the space either.
A typical single-family home has a lot size of around 600-1000 square meters (6,500-10,800 square feet). A 25kW turbine could potentially fit on such a lot, depending on the layout and zoning regulations.
Remember, these are just general guidelines. Always consult with our professionals to determine the exact space requirements for a specific 25kW turbine model and your intended location.
They will consider factors like wind patterns, zoning restrictions, and safety clearances to ensure proper placement.
For details on how to install a 25kW wind generator, read on.
Please watch the video below.
The 25kW wind turbine noise level is about 45 decibels, so it does not affect your daily life or sleep.
Maybe the language is too pale. You can watch the video below and listen to the actual sound:
Wind turbines are the main body of power generation and require current conversion and transmission through wind controllers, inverters, batteries, etc.
Moreover, wind, like solar energy, has intermittent windlessness. Once there is no wind, the wind turbine cannot generate electricity.
Therefore, if your local area does not have or does not want to use a public utility grid, connecting the wind turbine to the battery is currently the most economical and convenient option.
Among them, inverters are the most critical in wind power systems. If you are interested, please check below.
Model | MT-25kW |
Capacity(W) | 25,000W |
DC voltage(V) | 192-360 |
Input voltage(V) | 160-265VAC / 90-127VAC |
Input frequency | 45~65Hz |
Output voltage | Four steps AVR, 110V/120V/220V/230V for optional |
Output wave form | Pure sine wave |
THD | ≤3% |
Recharge current | 20-30A |
Transfer Efficiency Protections | 90%–95% |
Protections | Protection against short-circuit, over load, high-voltage, reverse polarity protection and low-voltage protection |
Overload | Overload 125% for 10 mins, 125%-150% for 1 min. automatically resume when the load becomes normal |
PVMARS’s 25kw inverter uses IGBT modules, which are more powerful than MOS tubes to control and achieve efficient power conversion. Its price will rise accordingly – (If you want to know the price of MOS tube inverters, please contact our team).
What makes it powerful?
The IGBT (Insulated Gate Bipolar Transistor) is a super-electronic switch that withstands ultra-high voltages.
The AC voltage in our homes is 220V, and the paper-thin IGBT chip can withstand 6500V.
In general, when all household appliances are turned on, the maximum current will not exceed 30A, but an IGBT chip the size of a fingernail can flow about 200A!
No, because the battery is DC power and the 25kW wind turbine is three-phase AC power.
The connection between them requires a wind controller to function as a DC-to-AC converter. This way, the battery can fully receive the 25kw wind turbine power.
The battery capacity for a regular 25kW wind turbine system is 80kWh. The battery capacity is closely related to the duration of your electrical load.
If you need a longer backup time, contact our professional to customize a system that meets your needs.
The price of a 25kW wind power plant is US$25,721 – the battery is gel. (valid for 30 days).
If you need lithium battery design, please send an email to [email protected] for consultation.
MPPT intelligent control
25kW wind controller
360Vdc intelligent control Lightning protection.
Wind turbine current limiting, Wind turbine automatic brake, and manual brake.
We suggest a 12m or 18m height tower for a 25kw wind turbine.
It helps fasten the wind generator to a safe altitude.
Use steel material with rust prevention.
Easy to install
Before each loading and shipment, our factory has special personnel to check the QC inspection of qualified products.
They distinguish and mark the area to place, ensure the shipment quantity, model, customer name is accurate, only after the standard is allowed to load containers.
Ensure that you receive complete and correct goods at the end.
Horizontal axis wind turbines are composed of wind blades, wheel housings, nacelles, tail fins, etc.
This 25kW wind turbine from PVMARS will be assembled and tested in the production factory.
You only need to set it up according to the installation manual provided by us to achieve off-grid living.
We also provide overseas installation services. Please fill in the form if required.
PVMARS products have passed TUV, IEC, ISO, CE, and RoHS quality certifications.
Before leaving the factory, our testers will perform no less than 120 extreme impact tests, and all kinds of inspections in order to get your approval.
With PVMARS IoT, through your phone or computer view real-time performance data of your energy system, such as solar panel and wind power generation, battery capacity, etc., and receive timely maintenance and safety alerts to extend the life of your hybrid system.
At the same time, your dedicated engineers will help you adjust the data through IOT. Double protection!
