Get a 1kW portable power station with solar panel Best price, to help you create electricity in an RV/Yacht/Boat/Marine/Robot. Solve power shortages.
Place Of Origin: China
Brand: PVMARS Solar Manufacturer
MOQ: 1 set, accept OEM & ODM
Type: Portable solar power system
Output voltage: 110V or 220V single phase
Payment: T/T, L/C, Paypal, Western Union
PVMARS Solar Energy storage technology factory, always with your needs as the core
Leading photovoltaic energy storage technology
Intelligent remote monitoring of 24-hour power supply
We only care about how YOU feel
To your satisfaction
100% EL TESTING, 100% IV TESTING, 100% DIGITAL WORKSHOP
In strict accordance with the German 5S technical standard, our production workshop has marked the production time, model, quantity, and other information for each raw material. Successfully ensure the high quality and efficiency of finished products.
PVMARS solar products have passed TUV, IEC, ISO, CE, and RoHS quality certifications.
Before leaving the factory, our testers will perform no less than 120 extreme impact tests, and all kinds of inspections in order to get your approval.
With PVMARS solar IoT, through your phone or computer view real-time performance data of your solar system, such as solar panel power generation, battery capacity, etc., and receive timely maintenance and safety alerts to extend the life of your solar system.
At the same time, your dedicated engineers will help you adjust the data through IOT. Double protection!
Features and functions:
Excellent performance because of double CPU intelligent control technology
3000 cycles lithium battery and 5 years service life
The mains supply mode/energy-saving mode/battery mode can be set for flexibility
Convenient and practical 5VDC-USB output port and 12VDC output port
MPPT Controller greatly improves the charging efficiency by more than 20%
Integrated protection and alarms including AC output overload protection, short circuit protection, etc
To speed up full charging, you can manually switch on the mains while in solar charging mode.
High-end technology from China: PV activation of lithium batteries. BMS-protected lithium batteries can also be directly activated by photovoltaics.
Your dedicated engineers are ready to start customizing your solar clean energy system!
| 1000 watt solar panel power Home System Load Reference | |||
| Load Name | Load Rated Power | QTY | Total Rated Power |
| Lights | 11W | 4 | 44W |
| Fan | 80W | 1 | 80W |
| Computer | 100W | 1 | 100W |
| Washing machine | 250W | 1 | 250W |
| Electric cooker | 300W | 1 | 300W |
| Satellite TV receiver/VCD | 25W | 1 | 25W |
| Color TV | 100W | 1 | 100W |
| Water Pump | 25W | 1 | 100W |
| Total | 999W | ||
This example is just for reference. But your load can be less than 1kw | |||
Remark: water pump is inductive load, start working power is 3-6 times more than normal power, in the process of use, turn on the inductive load first | |||

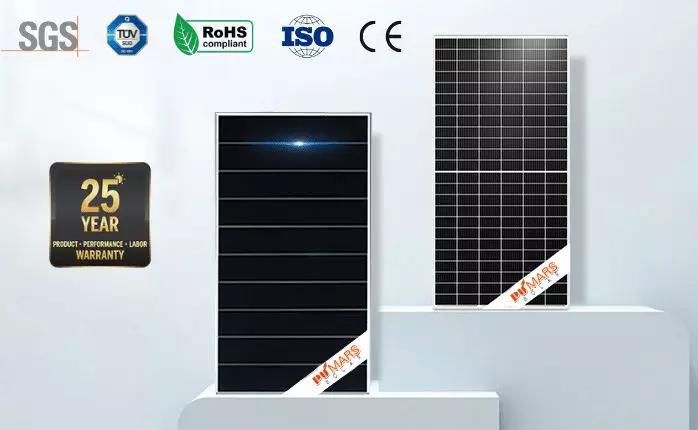

Shingled/HJT solar panel, USA TR Technology panel, higher efficiency, longer life
Vmp:39V – Voc:47.13V – Imp 12.3A – Isc:12.91A
25 years guarantee (CE TUV).
Strong anti-cracking, heat spot protection
Capacity: 12V65Ah-250Ah gel battery or Lithium battery inbuilt optional
The latest in through-wall welding and full-sealing technology.
More suitable for motor loads.
Service life: 8-10-15 years
| Model | SCL-500W | SCL-1000W | SCL-1500W |
| Battery Voltage | 12V | 24V | 24V |
| Inverter | |||
| RATED POWER | 500W | 1000W | 1500W |
| Input Voltage Range | 140-275V | ||
| Input Frequency | 45-65Hz | ||
| Output Voltage | 220-240VAC | ||
| Output Frequency | 50/60Hz | ||
| Output Wave | Pure Sine Wave | ||
| Speficifation Of Built-in lifepo4 Battery | 12V50AH | 24V50AH | 24V65AH |
| 600WH | 1200WH | 1560WH | |
| Communication | RS232(optional) | ||
| working model | 01:City power priority 02:Energy saving mode 03:solar power priority | ||
| Solar Input | |||
| Max. PV Power | 360W | 720W | 960W |
| Range Of Charging Voltage | 34V-150V | 34V-150V | 34V-150V |
| Rated Charge Current | 30A | 30A | 30A |
| Voltage For Overcharge Protection | 14.2VDC | 28.4VDC | 28.4VDC |
| Voltage For Overcharge Recovery | 14VDC | 28VDC | 28VDC |
| Voltage For Floating Charge | 13.7VDC | 27.4VDC | 27.4VDC |
| DC Output | |||
| Voltage For High Voltage Protection | 16VDC | 32VDC | 32VDC |
| High Voltage Recovery Voltage | 15.2VDC | 30.2VDC | 30.2VDC |
| Low Voltage Recovery Voltage | 12.6VDC | 25.2VDC | 25.2VDC |
| Low Voltage Protecton Voltage | 11VDC | 22VDC | 22VDC |
| 5VDC USB Output | 2pcs*2A | 2pcs*2A | 2pcs*2A |
| 12VDC Output Ports | 2pcs*2A | 2pcs*2A | 2pcs*2A |
| Low Voltage Protecton Voltage | 11VDC | 22VDC | 22VDC |
| PHYSICAL | |||
| Heat Dissipation/Cooling | Temperature control by intelligent exhaust fan | ||
| Display | Digital LCD | Digital LCD | Digital LCD |
| Electricity Charging | Yes | Yes | Yes |
| External Size：W*D*H（mm） | 480*230*370mm | 480*230*370mm | 480*230*370mm |
| Package Size：W*D*H（mm） | 520*275*450mm | 520*275*450mm | 520*275*450mm |
| G.W.(Gross Weight) | 19kg | 30kg | 45kg |
Full set for Slope, Flat or Ground roof optional
Including complete fittings
Wind load: 55m/s, snow load:1.5kn/m2
Structure: Anodized aluminum + stainless steel
Can be customized as per user’s requirement
1) Copper row for connection to battery
2) 4mm2 PV cable 50M, 25mm2 cable 25M
3) full set of install tools, terminals and MC4 and 1P63A switch box
Carton and Wooden box packing optional
Before each loading and shipment, our factory has special personnel to check QC inspection of qualified products.
They distinguish and mark the area to place, ensure the shipment quantity, model, customer name is accurate, only after the standard is allowed to load containers.
Ensure that you receive complete and correct goods at the end.
More installation manual and video, please click here contact us
We have oversea installation service. The engineer will arrive at the installation site within 10 days after the goods arrived at port.
In the world, there are many clean energy sources, but only photovoltaicss is the most reliable power supply. The closest to our life is a kind of renewable energy everywhere. The future of photovoltaic energy will be because of technological innovation, and the cost will be lower, we will live an independent and free life.
PVMARS Solar is one of the most innovative manufacturers of solar energy storage technology. This is for you to pursue safer, more convenient, and more competitive prices for solar products.
Direct manufacturer pricing, no middleman markups.
We are able to offer durable equipment at competitive price.
Q: What does this PVMARS system include?
A: A complete off-grid or on-grid solar clean energy system, including all accessories required for installation.
Q: Can I customize one?
A: Of course, you can customize the most efficient solar power system. Your exclusive solar expert is waiting. To provide you with any energy solution, customized according to different power consumption, actual use of equipment, scenarios etc. Solar systems come in different configurations.
Q: Who is responsible for transportation? Or home delivery?
A: There will be dedicated staff responsible for your products’ production, packaging and shipping. To deliver goods safely to the destination port by sea or air. The entire process, including transportation and customs clearance, is handled by us. Europe, Asia, Africa to provide home delivery or nearby pickup service. Provide relevant packing and shipping documents and information on time.
Q: What is the lifetime of a solar power system?
A: The life of the solar panel is 25 years, the charger controller is 5-7 years, the inverter is 5-7 years, and the battery is 8-10 years. Our IOT monitors the installation and operation of your solar power system in real time to extend service life.
Q: Are there any protection measures for solar power overload, and how do electricity leaks, lightning strikes, and hail happen?
A: PVMARS Solar’s PV combiner box and inverter have overload safety functions. To protect each other, they will disconnect the connection with your equipment in the event of abnormal voltage, such as lightning strikes and leaks. After the voltage is restored automatically, the solar system will start automatically. Secondly, the photovoltaic module floor is made of excellent impact-resistant tempered glass. This glass can withstand 200Pa wind stress and 7200Pa snow stress after strict trial and test when passing EU certification.
Q: What can you expect from PVMARS Solar?
A: In addition to providing products, PVMARS solar also provides free on-site survey, customized design solutions, production, installation and maintenance one-stop services.
Our broadcast station is located at the top of the mountain, and we have used diesel generators before. We worry about the diesel transportation of the generators, maintenance, and voltage instability every day.
The current power source is the 30kw hybrid solar wind energy system. In our limited budget and installation area, PVMARS recommends using a solar wind system. This can reduce the battery footprint, but also provide a 24-hour uninterrupted and stable power supply.
It’s awesome how much I save on my partner’s bill with 10kw solar and battery package, but for me, it’s the peace of mind that I can use our electrical appliances knowing that we have clean energy. I’ve already recommended them to family members because they’ve been friendly, upfront, and responsive.
500kw solar energy storage system has operated in our remote countryside for two years. This week, Dunsborough experienced another blackout. Now we are happy to tell you that our town is not affected. All houses keep the lights on, use refrigerators, surf the Internet and listen to music to relax. This is thanks to PVMARS solar company, which customized the solar battery system according to our town’s electricity demand. This has greatly improved our local residents’ happiness index.
There was no problem with the installation, the instructions and online remote video install guidance were great, the system is working great and I’m producing 90% of my power. I just got my first bill back, last year $1290, this year $119, it’ll pay for itself in two years at this rate. You just have to adjust your times for power usage and you’ll save a lot.
The 5kw solar storage system was installed in 2018. We were initially attracted to the idea of using lithium batteries at night while solar power supply our house during the day. In addition, it can also provide seamless grid failure protection. At that time we did not know that the main city power had been cut off, until we saw outside, originally brightly lit streets and houses, because there is no electricity change to dark, to realize that the city grid has been cut off. And our house because of solar energy, to achieve power independence, electricity freedom.
We have seen an immediate reduction in our energy bills and a change in our power consumption patterns since we installed the PVMARS off-grid solar power system. And PVMARS IOT is so smart to remind me why my battery is running so fast. We can also contribute power back to the grid over the summer, which is a big plus.
